Type | Description |
|---|---|

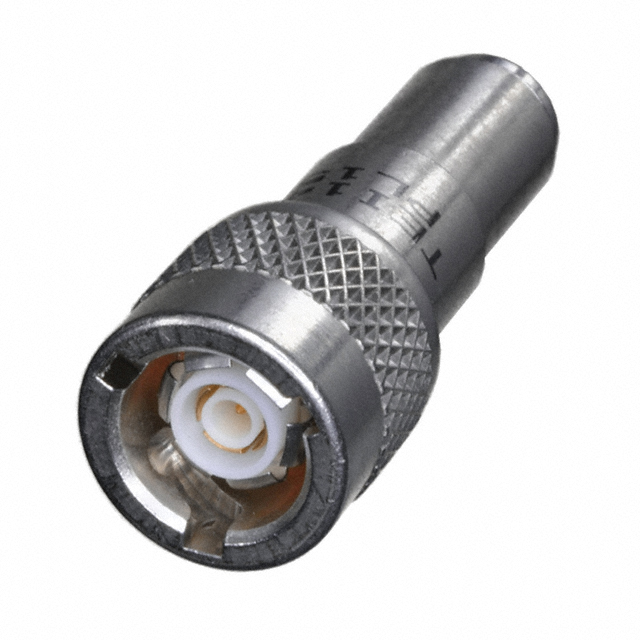

Category | Connectors, Interconnects Coaxial Connector (RF) Assemblies |
Mfr |
Cinch Connectivity Solutions Trompeter |
Series |
150 |
Packaging |
Bulk |
Part Status |
Active |
Connector Style |
TRS, Twinaxial/Triaxial |
Connector Type |
Plug, Male Pin (Concentric) |
Contact Termination |
Crimp |
Shield Termination |
Crimp |
Impedance |
Non-Constant |
Mounting Type |
Free Hanging (In-Line) |
Mounting Feature |
- |
Cable Group |
M17/176-00002 |
Fastening Type |
Bayonet Lock |
Frequency - Max |
500 MHz |
Number of Ports |
1 |
Features |
Three Lug |
Housing Color |
Silver |
Ingress Protection |
- |
Center Contact Material |
Beryllium Copper |
Includes |
2 pcs - 1 Connector, 1 Heat Shrink |
Body Material |
Brass |
Body Finish |
Nickel |
Center Contact ting |
Gold |
Dielectric Material |
- |
Operating Temperature |
-65°C ~ 200°C |
Voltage Rating |
400 V |
Mating Cycles |
500 |
Insertion Loss |
- |
Base Product Number |
PL155 |
