Type | Description |
|---|---|
Category | Connectors, Interconnects FFC, FPC (Flat Flexible) Connector Assemblies |
Manufacturer |
Hirose Electric Co Ltd |
Series |
FH26 |
Packaging |
Tape & Reel (TR) |
Part Status |
Active |
Flat Flex Type |
FPC |
Mounting Type |
Surface Mount, Right Angle |
Connector/Contact Type |
Contacts, Bottom |
Number of Positions |
67 |
Pitch |
0.012" (0.30mm) |
Termination |
Solder |
FFC, FCB Thickness |
0.20mm |

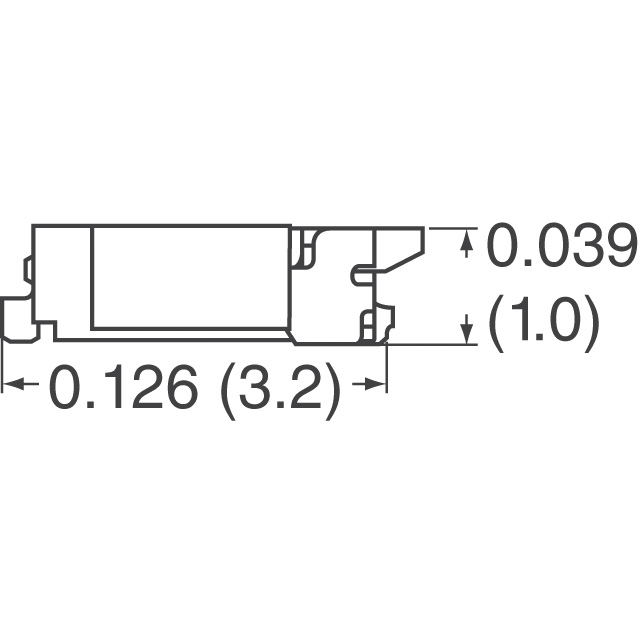

Height Above Board |
0.039" (1.00mm) |
Locking Feature |
Flip Lock |
Cable End Type |
Tapered |
Contact Material |
Phosphor Bronze |
Contact Finish |
Gold |
Housing Material |
Liquid Crystal Polymer (LCP) |
Actuator Material |
Polyamide (PA), Nylon |
Features |
Zero Insertion Force (ZIF) |
Voltage Rating |
30V |
Operating Temperature |
-55°C ~ 85°C |
Material Flammability Rating |
UL94 V-0 |
Current Rating (Amps) |
0.2A |
Contact Finish Thickness |
2.00µin (0.051µm) |
Housing Color |
Beige |
Actuator Color |
Brown |
Mating Cycles |
- |
Base Product Number |
FH26 |
