Type | Description |
|---|---|
Category | Connectors, Interconnects IC Sockets |
Manufacturer |
Mill-Max Manufacturing Corp. |
Series |
110 |
Packaging |
Tube |
Part Status |
Active |
Type |

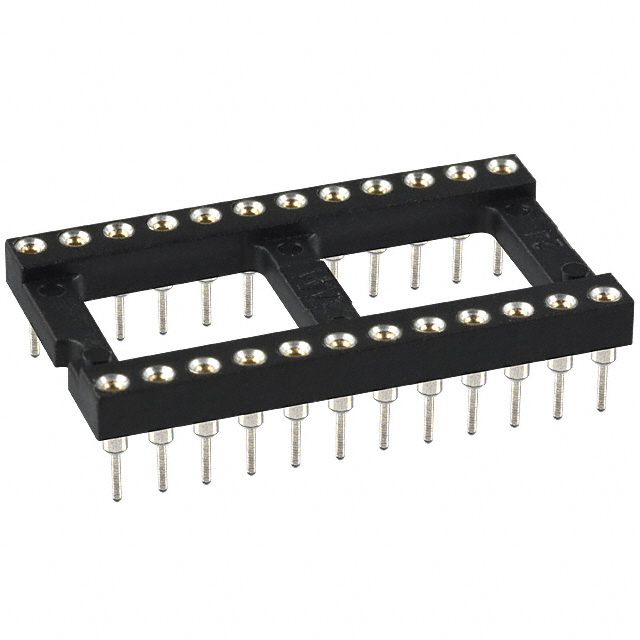

DIP, 0.6" (15.24mm) Row Spacing |
Number of Positions or Pins (Grid) |
24 (2 x 12) |
Pitch - Mating |
0.100" (2.54mm) |
Contact Finish - Mating |
Gold |
Contact Finish Thickness - Mating |
30.0µin (0.76µm) |
Contact Material - Mating |
Beryllium Copper |
Mounting Type |
Through Hole |
Features |
Open Frame |
Termination |
Solder |
Pitch - Post |
0.100" (2.54mm) |
Contact Finish - Post |
Tin |
Contact Finish Thickness - Post |
200.0µin (5.08µm) |
Contact Material - Post |
Brass Alloy |
Housing Material |
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
Operating Temperature |
-55°C ~ 125°C |
Termination Post Length |
0.125" (3.18mm) |
Material Flammability Rating |
- |
Current Rating (Amps) |
3 A |
Contact Resistance |
- |
Base Product Number |
110-43 |
